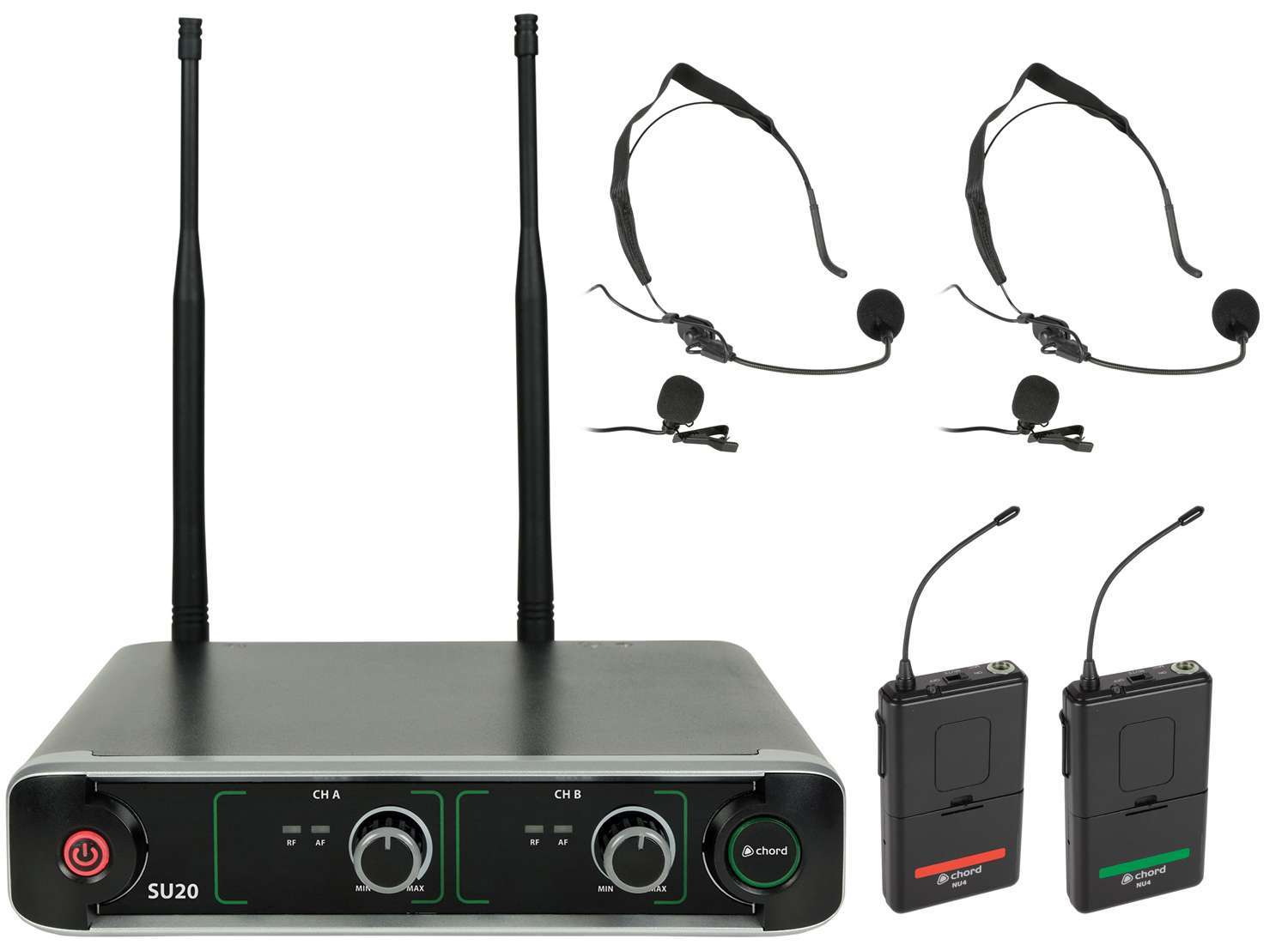

Chord SU20 Beltpack UHF Mics 863.4+864.3

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space.

BNC cables and detachable antennas are provided for rear or front mounting as required.

Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.

• Up to 2 sets (4 microphones) can be used together

• Available in handheld or beltpack versions with 2 carrier frequency options

• Front or rear mountable antennas Compact half-rack receiver

• Supplied with power adaptor and 4 x AA batteries

• Power supply14Vdc 350mA (adaptor supplied)

• Antenna connectionBNC

• Batteries4 x AA (2 per transmitter) included

• Range: 60m

• Microphone polar pattern Cardioid (handheld, neckband or lavalier)

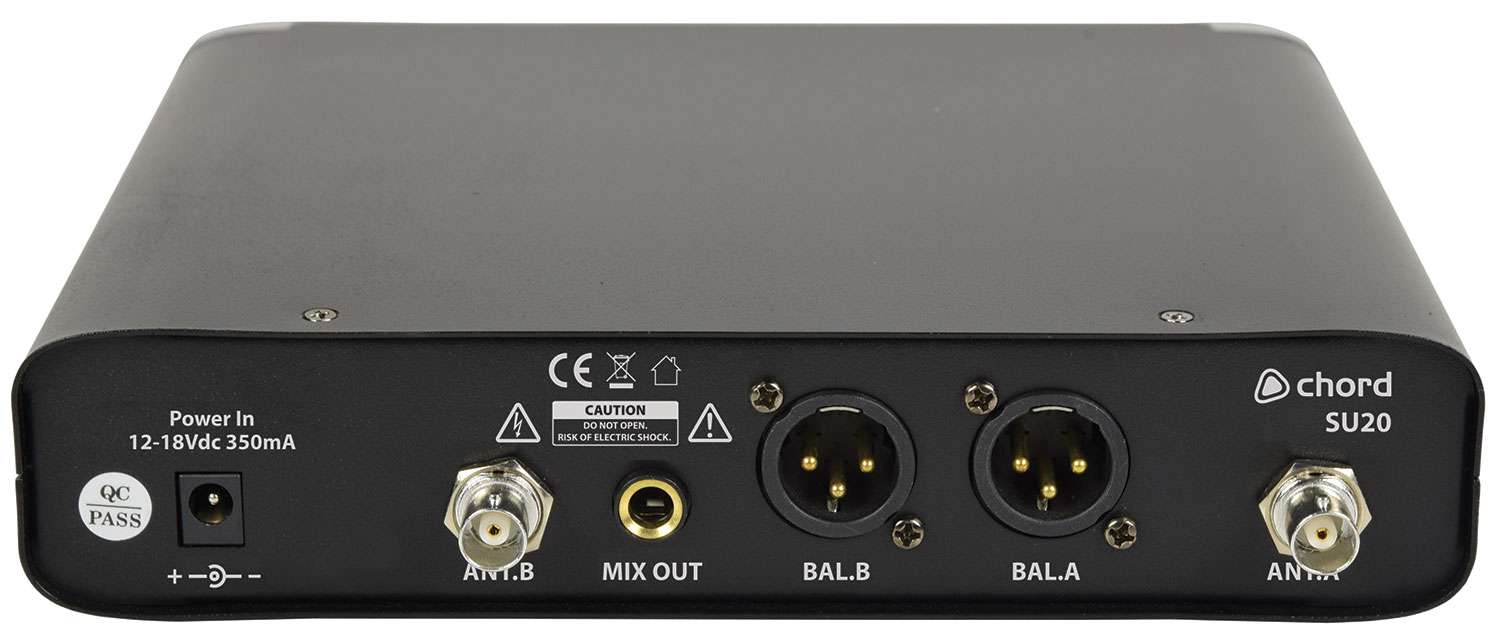

• Output connections: 2 x balanced XLR, 1 x unbalanced 6.3mm jack

• Output impedance: 2.2k Ohms

• Output level: 400mV (balanced), 200mV (unbalanced)

• Frequency response: 50Hz – 18kHz (±3dB)

• S/N ratio: >80dB

• THD: <0.5% @ 1kHz

• Dimensions receiver: 203 x 187 x 42mm

• Weight  receiver: 845g
